plastic injection mold tooling

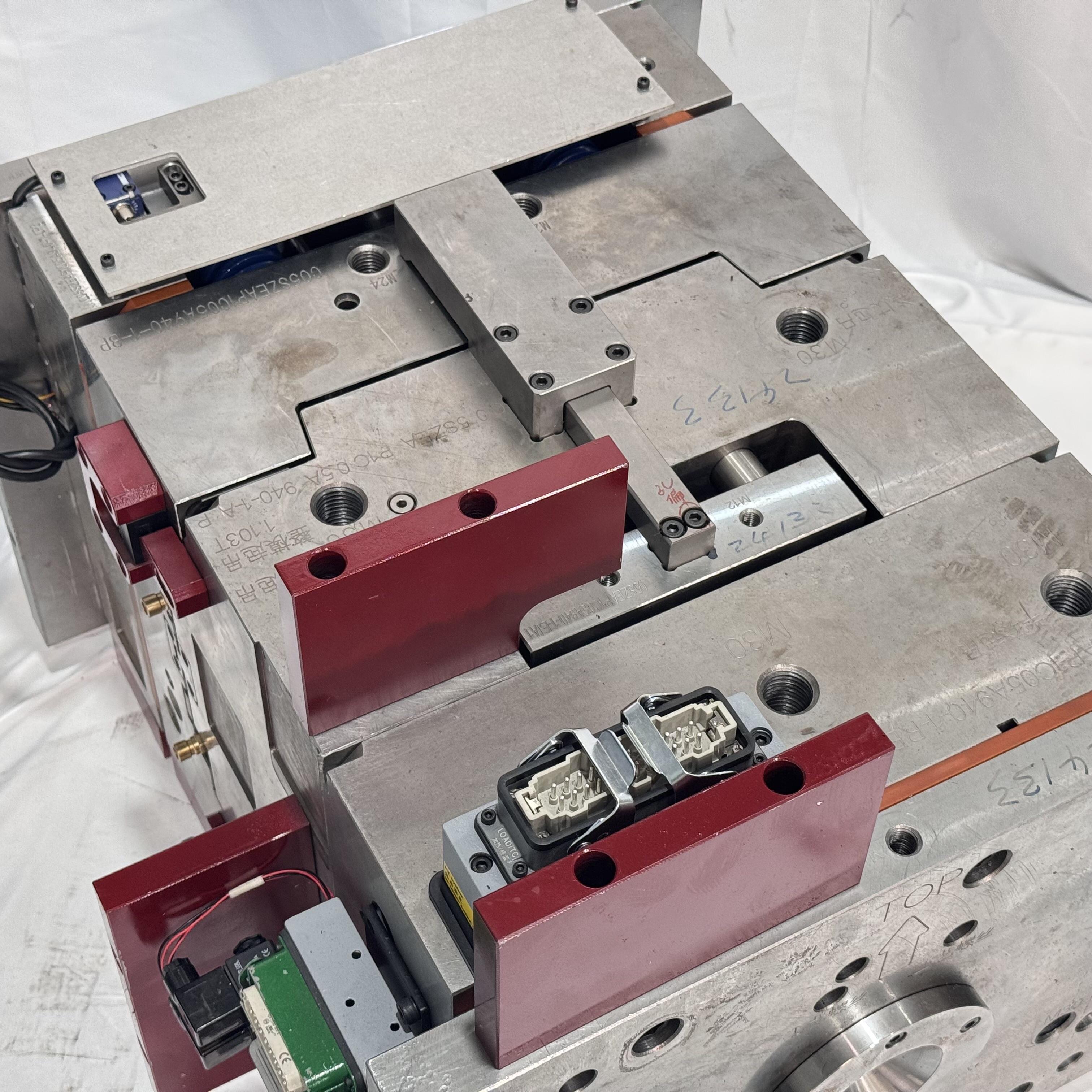

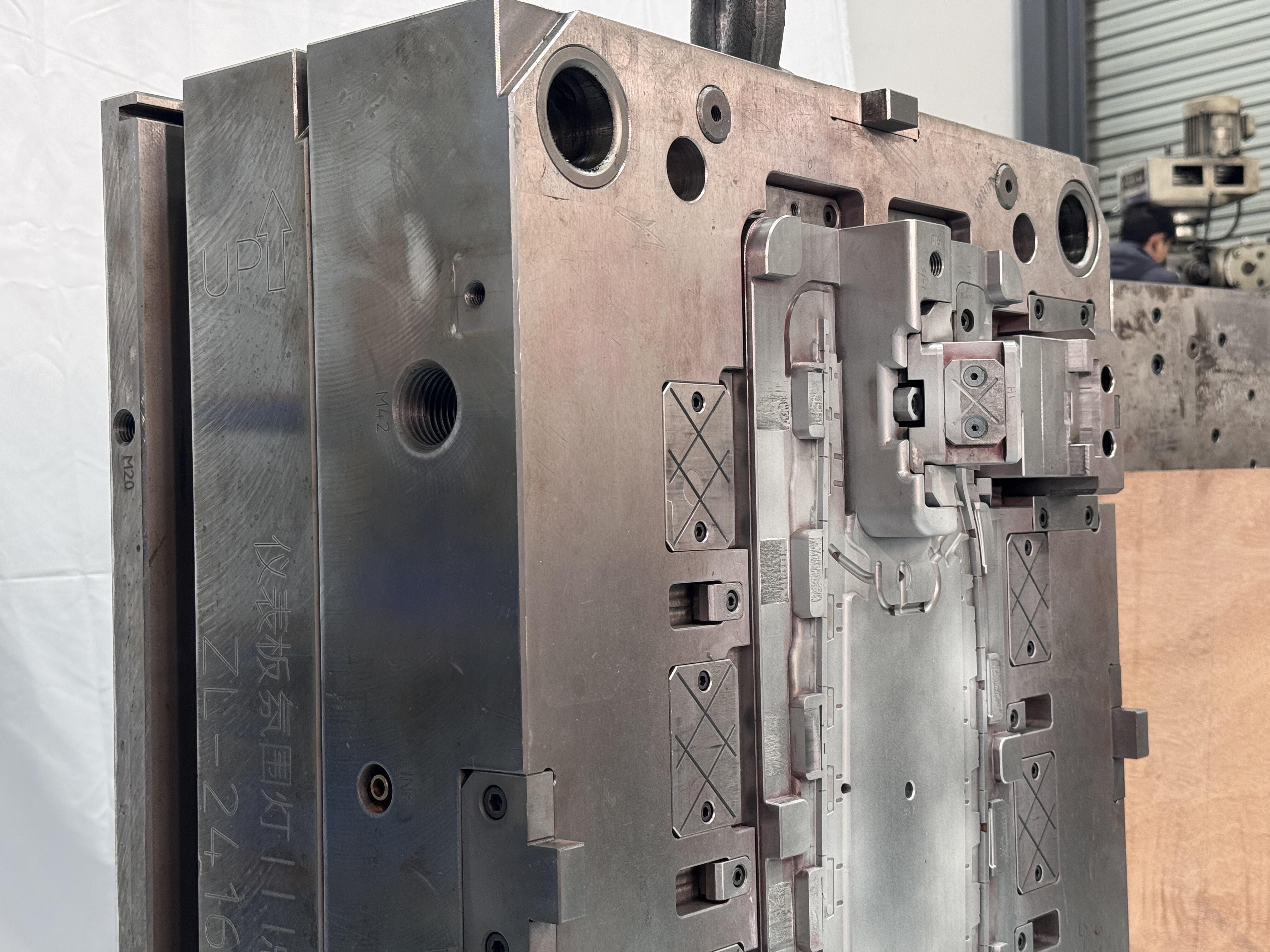

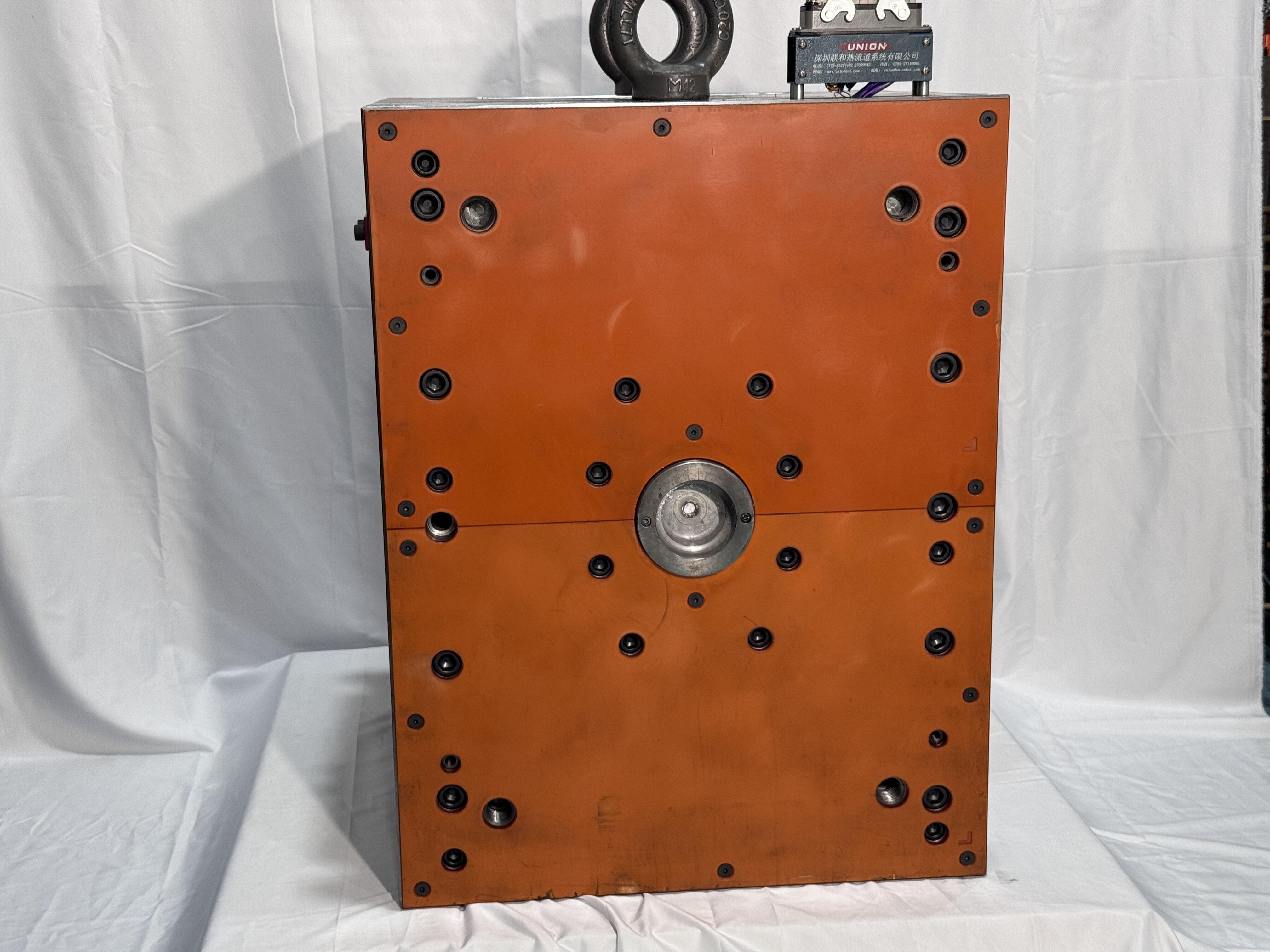

Plastic injection mold tooling represents a cornerstone technology in modern manufacturing, enabling the mass production of precise plastic components with exceptional consistency and efficiency. This sophisticated tooling system consists of two main components: the injection molding machine and the mold tool itself. The mold tool is precision-engineered with cavities that define the final shape of the plastic part, complete with intricate features such as gates, runners, and ejection systems. The technology operates by injecting molten plastic material into the mold cavity under high pressure, where it cools and solidifies into the desired shape. Advanced features include temperature control systems, multiple cavity designs, and automatic part removal mechanisms. The tooling can accommodate various plastic materials and produces parts ranging from simple components to complex, multi-feature products. Modern plastic injection mold tooling incorporates smart sensors for real-time monitoring, ensuring optimal production parameters and consistent quality. This technology serves diverse industries, including automotive, consumer electronics, medical devices, and household products, delivering both high-volume production capability and cost-effective manufacturing solutions.

New Product Releases

Plastic injection mold tooling offers numerous compelling advantages that make it the preferred choice for manufacturers worldwide. First, it delivers unprecedented production efficiency, capable of producing thousands of identical parts per hour with minimal supervision. The high level of automation reduces labor costs while maintaining consistent quality across production runs. The technology provides excellent material utilization, with minimal waste and the ability to recycle runners and rejected parts. Cost effectiveness is achieved through the amortization of tooling costs over large production volumes, resulting in low per-part costs. The process offers remarkable design flexibility, accommodating complex geometries and intricate details that would be impossible or cost-prohibitive with other manufacturing methods. Quality control is enhanced through precise temperature and pressure control, ensuring dimensional stability and structural integrity of finished parts. The tooling can handle a wide range of thermoplastic materials, enabling manufacturers to select the optimal material for specific applications. Modern injection mold tooling incorporates advanced cooling systems that reduce cycle times and improve part quality. The technology also supports various surface finishes and textures, eliminating the need for secondary operations. Additionally, the process is environmentally friendly, with minimal material waste and energy-efficient operation. The long tool life and minimal maintenance requirements further contribute to the overall cost-effectiveness of the manufacturing process.

Tips And Tricks

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

plastic injection mold tooling

plastic mould maker
plastic moulding parts
plastic mold price
heat mold plastic
prototype and plastic mold
prototype & plastic mold co
Advanced Cooling System Technology

Advanced Cooling System Technology

The sophisticated cooling system in modern plastic injection mold tooling represents a breakthrough in manufacturing efficiency and part quality. This system utilizes conformal cooling channels that follow the contours of the part geometry, ensuring uniform temperature distribution throughout the mold. The advanced cooling technology significantly reduces cycle times by up to 40 percent compared to conventional cooling methods, directly improving production efficiency and reducing energy consumption. Temperature sensors integrated into the cooling system provide real-time monitoring and adjustment capabilities, ensuring optimal cooling parameters for each production cycle. This precise temperature control results in minimal part warpage, reduced internal stresses, and superior surface finish quality.
Multi-Cavity Design Optimization

Multi-Cavity Design Optimization

Multi-cavity mold design represents a significant advancement in production efficiency and cost optimization. This feature allows multiple identical parts to be produced simultaneously within a single mold, dramatically increasing production output. The sophisticated balancing of runner systems ensures uniform filling of all cavities, guaranteeing consistent part quality across all positions. Advanced simulation software is used during the design phase to optimize cavity layout and runner system design, minimizing material waste and ensuring optimal flow characteristics. This technology enables manufacturers to achieve higher production volumes while maintaining precise quality control and reducing per-part costs.
Smart Monitoring and Quality Control

Smart Monitoring and Quality Control

The integration of smart monitoring systems in plastic injection mold tooling represents the cutting edge of quality control in manufacturing. Advanced sensors throughout the mold monitor critical parameters including pressure, temperature, and material flow in real-time. This data is continuously analyzed to detect any deviations from optimal processing conditions, allowing for immediate adjustments to maintain part quality. The system can predict potential issues before they occur, reducing scrap rates and minimizing downtime. Machine learning algorithms process the collected data to optimize production parameters automatically, ensuring consistent part quality while maximizing efficiency. This smart monitoring capability provides complete traceability and documentation for quality assurance purposes.
