plastic injection tooling

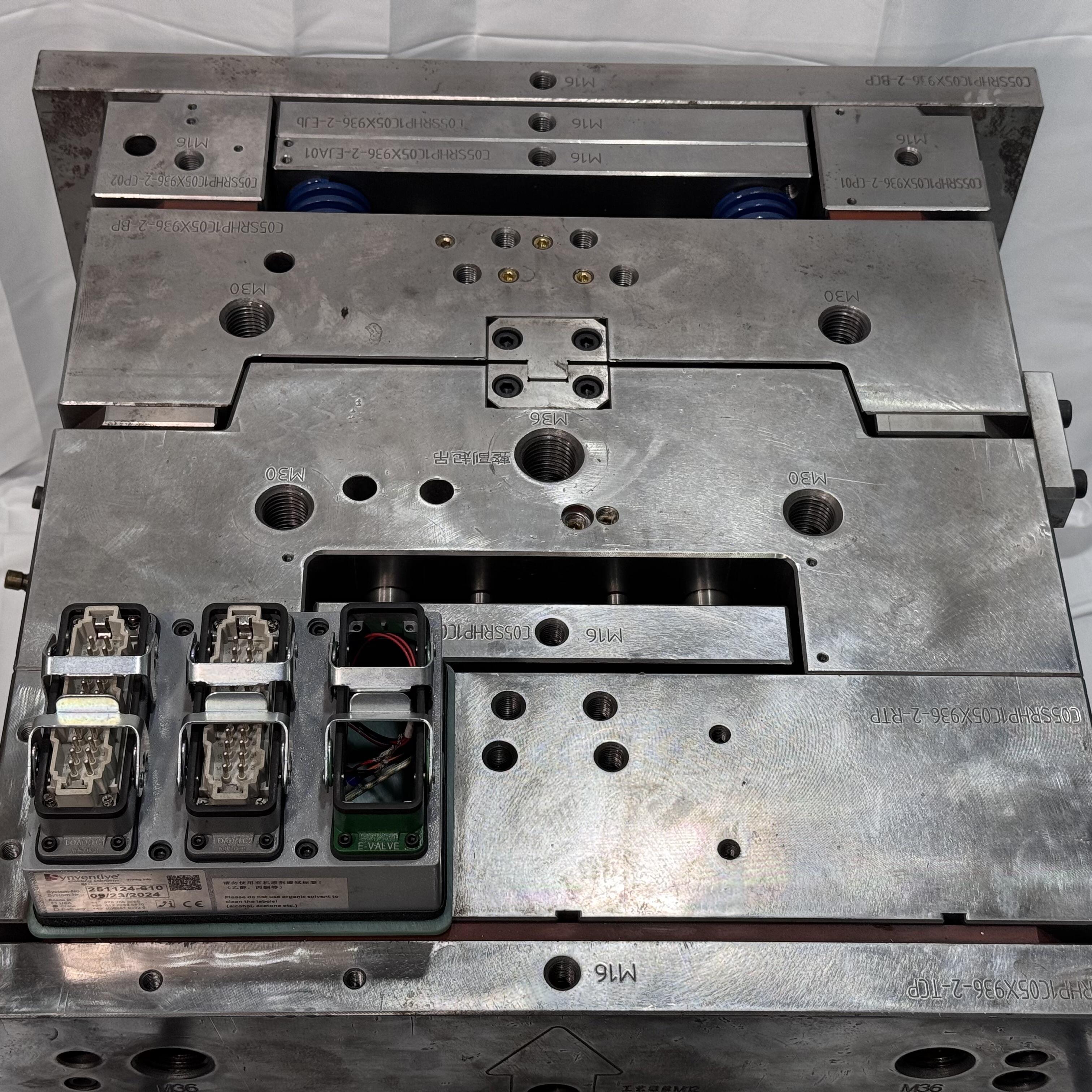

Plastic injection tooling represents a crucial manufacturing process that enables the mass production of precise plastic components. This sophisticated system comprises various elements, including the mold base, cavities, cores, ejector mechanisms, and cooling channels. The tooling process begins with the careful design and engineering of molds that perfectly match the desired end product specifications. These tools are typically crafted from high-grade steel to ensure durability and maintain dimensional accuracy throughout thousands of production cycles. The system operates by injecting molten plastic material into carefully designed mold cavities under high pressure, where it cools and solidifies into the desired shape. Advanced cooling systems within the tooling help optimize cycle times and ensure consistent part quality. The technology accommodates various plastic materials and can produce components ranging from simple shapes to complex geometries with intricate details. Modern plastic injection tooling incorporates sensors and control systems that monitor critical parameters such as pressure, temperature, and flow rates, ensuring consistent quality across production runs. This technology has revolutionized manufacturing across numerous industries, from automotive and consumer electronics to medical devices and household products.

New Products

Plastic injection tooling offers numerous compelling advantages that make it a preferred choice in modern manufacturing. First, it enables high-volume production with exceptional consistency, ensuring each part meets exact specifications. The process provides outstanding cost-efficiency for large production runs, as the initial tooling investment is offset by low per-unit costs and minimal material waste. The versatility of injection tooling allows for the creation of complex geometries and intricate details that would be impossible or prohibitively expensive with other manufacturing methods. The automated nature of the process reduces labor costs and human error, while sophisticated quality control systems ensure consistent output. Modern injection tooling systems offer excellent material flexibility, accommodating a wide range of thermoplastics and engineering resins to meet diverse application requirements. The precision of the process allows for tight tolerances and superior surface finishes, eliminating the need for secondary operations in many cases. Advanced cooling systems and optimized mold designs contribute to faster cycle times, increasing production efficiency. The durability of properly maintained injection tools ensures long-term reliability and consistent part quality over extended production runs. Environmental benefits include minimal waste generation and the ability to use recycled materials in many applications. The scalability of injection tooling allows manufacturers to adjust production volumes according to demand, while maintaining cost-effectiveness and quality standards.

Practical Tips

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

plastic injection tooling

injection plastic parts
plastic injection tooling
precision moulds & dies
plastic injection molding manufacturers
plastic injection moulding suppliers
custom plastic parts
Advanced Thermal Management Systems

Advanced Thermal Management Systems

The sophisticated thermal management systems in modern plastic injection tooling represent a significant advancement in molding technology. These systems utilize strategically placed cooling channels and advanced temperature control mechanisms to optimize the cooling phase of the injection molding cycle. The precise control of mold temperature ensures consistent part quality and reduces cycle times, directly impacting production efficiency and cost-effectiveness. Conformal cooling channels, designed to follow the contours of the part geometry, provide uniform heat distribution and extraction, minimizing issues such as warpage and internal stresses in molded components. This technology enables the production of complex parts with consistent quality while maintaining optimal cycle times.
Precision Engineering and Quality Control

Precision Engineering and Quality Control

The integration of cutting-edge precision engineering and comprehensive quality control systems sets modern injection tooling apart. High-precision machining techniques ensure exact dimensional accuracy in mold construction, while advanced sensors monitor critical parameters throughout the production process. These systems provide real-time feedback on pressure, temperature, and material flow, allowing for immediate adjustments to maintain optimal production conditions. The implementation of statistical process control enables continuous monitoring and adjustment of production parameters, ensuring consistent part quality. This level of precision and control is essential for manufacturing components that meet stringent industry standards and specifications.
Sustainable Manufacturing Capabilities

Sustainable Manufacturing Capabilities

Modern plastic injection tooling incorporates features that support sustainable manufacturing practices. The system's efficient material utilization minimizes waste, while advanced runner systems and gate designs optimize material flow and reduce scrap. The ability to process recycled materials without compromising quality demonstrates the technology's adaptability to environmental concerns. Energy-efficient heating and cooling systems reduce power consumption, while precise process control minimizes material waste and rejected parts. These capabilities allow manufacturers to meet increasingly stringent environmental regulations while maintaining productivity and profitability.
